L3 Series Precision High-Speed Lathe
L3 Series Precision High-Speed Lathe
CNC lathe is a high-precision, high-speed full-function CNC lathe. It is a new generation of world-standard machine and can widely meet the high-efficiency processing requirements for small and medium-sized precision parts in various industries such as automotive, electronics, home appliances, aerospace, molds, and instruments.

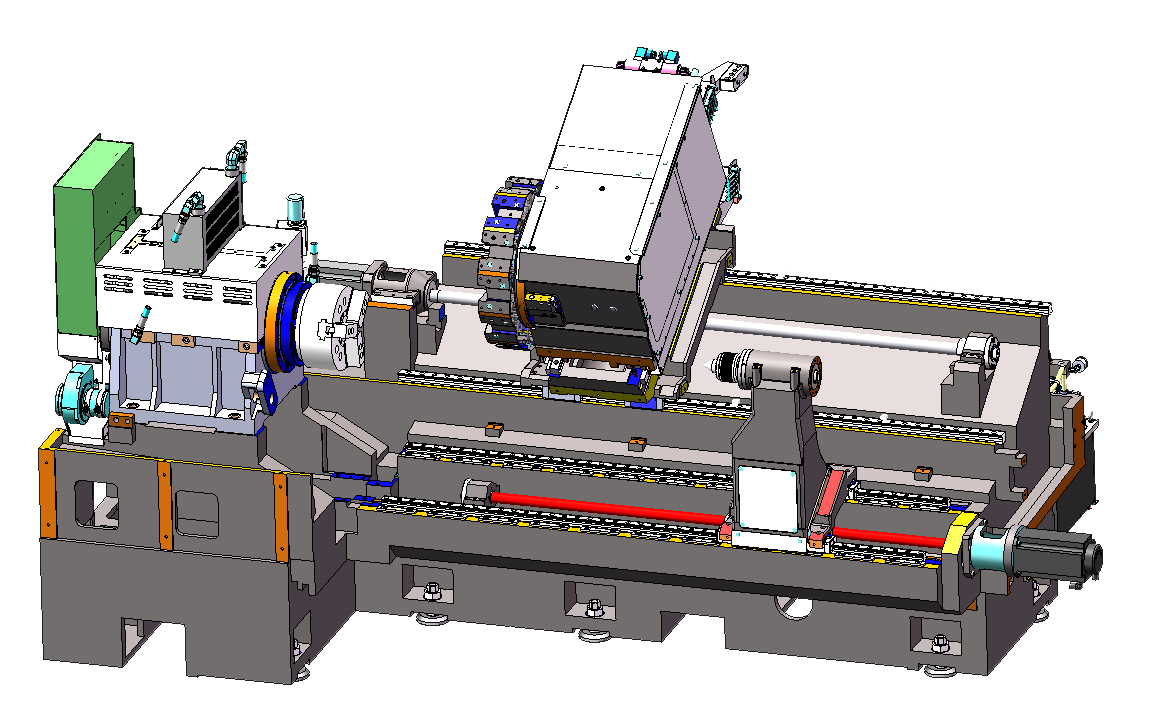

Products Structural Performance
Production Line Interface

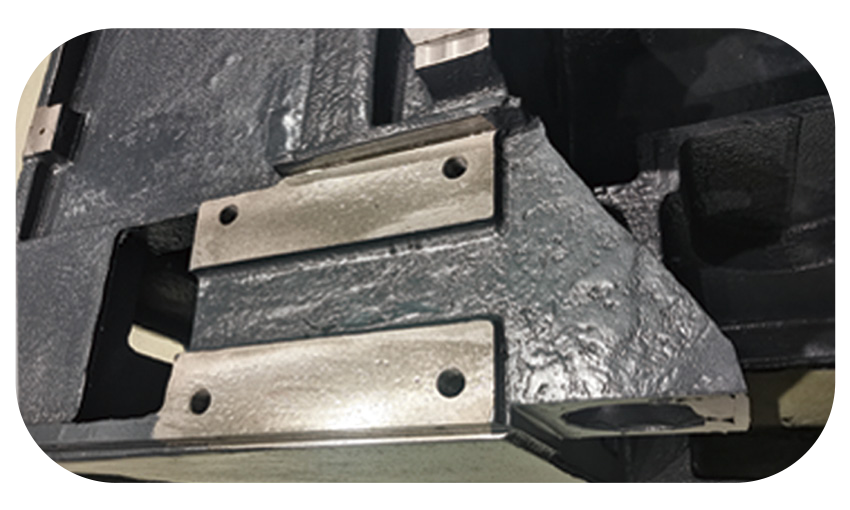

Overall structure, which can flexibly expand automation options.
Production Line Interface

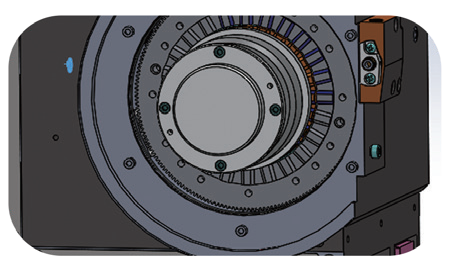

Circular arc tooth structure, with high precision, no tool lifting during tool change, fast servo tool changing speed
Turret

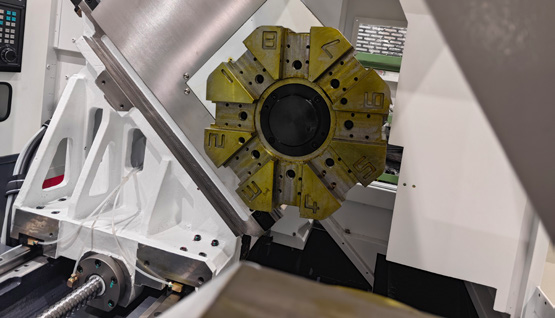

Triangular support structure, with better X-axis stability, higher precision, and faster speed.
Spindle

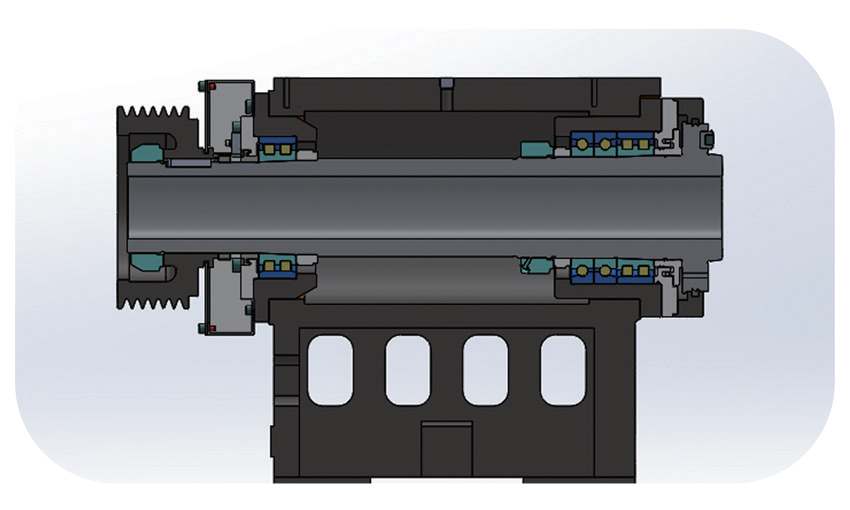

Integral spindle structure, large support span, good stability, supported by 6 rows of precision bearings, good rigidity and high precision.
Production Line Interface
Overall structure, which can flexibly expand automation options.
Production Line Interface
Overall structure, which can flexibly expand automation options.
Products Datebase
| Item | Model | L360 | L360M | L370 | L380 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 300 | 500 | 300 | 500 | 300 | 500 | 300 | 500 | |||
| Processing Capacity | Maximum Swing Diameter | mm | 536 | |||||||
| Maximum Machining Diameter | mm | 330 | ||||||||
| Distance from Spindle Nose to Turret | mm | 92 – 417 | 104 – 674 | 61 – 386 | 73 – 643 | 92 – 417 | 104 – 674 | 92 – 417 | 104 – 674 | |
| Maximum Machining Length | mm | 295 | 540 | 260 | 505 | 295 | 540 | 295 | 540 | |
| Spindle | Output Power | kW | 13 | 11/15 (2/15) | 17 | |||||
| Spindle Bearing Type | – | A2 – 5 Spindle | A2 – 6 Mechanical Spindle | A2 – 6 Electric Spindle | ||||||
| Spindle Speed ★1 | r/min | 5000 | 4500 | 4500 | ||||||
| Chuck | inch | 6 (10) | 8 (10) | 8 (10) | ||||||
| Spindle Bore Diameter | mm | ∅ 56 | ∅ 62 | ∅ 62 (76) | ||||||
| Bar Passing Capacity | mm | ∅ 45 | ∅ 51 | ∅ 51 (65) | ||||||
| C – Axis Indexing (if equipped) | – | 0.001 | ||||||||
| Transfer System | X – Axis Stroke | mm | 185 | |||||||
| Z – Axis Stroke | mm | 325 | 570 | 325 | 570 | 325 | 570 | 325 | 570 | |
| X – Axis Rapid Feed Rate | mm/min | 30000 | ||||||||
| Z – Axis Rapid Feed Rate | mm/min | 36000 | ||||||||
| Turret | Tool Capacity | T | 8 (12) | 12 | 8 (12) | 8 (12) | ||||
| Tool Indexing Time | sec/step | 0.2 | 0.2 | 0.2 | 0.2 | |||||
| Power Turret | – | BMT | – | BMT | ||||||
| Turret Power | mm | – | 45 | – | 55 | |||||
| Turret Tool Size | mm | 25×25 (20×20) | 20×20 | 25×25 | 25×25 (20×20) | |||||
| Maximum Tool Diameter | mm | ∅ 40 | ∅ 32 | ∅ 40 | ∅ 40 | |||||
| Milling Power | kW | – | 2.1 | – | 4 | |||||
| Milling Speed | r/min | – | 6000 | 6000 | ||||||
| Cooling System | Tank Capacity | L | 180 | 225 | 180 | 225 | 180 | 225 | 180 | 225 |
| Pump Power | W | 750 | ||||||||
| Rated Flow Range | m³/h | 15 ~ 7 | ||||||||
| Head Range | m | 19 ~ 38 | ||||||||
| Tailstock (Optional) | Tailstock Form | – | Hydraulic Tailstock / Servo Tailstock | |||||||
| Taper | – | MT4 | ||||||||
| Moving Speed | m/min | 10 | ||||||||
| Moving Stroke | mm | 300 | 500 | 300 | 500 | 300 | 500 | 300 | 500 | |
| Power (Continuous) | kVA | 21 | 27 | 21 | 27 | 21 | 27 | 21 | 27 | |
| Other | Floor Space (Horizontal Type) (L×W×H) | mm | 4360×2271(2313)×1830 | 4360×2313×1830 | ||||||
| Floor Space (Inclined Type) (L×W×H) | mm | 4541(4913)×2488×1830 | 4913×2488×1830 | |||||||
| Machine Weight | Kg | 3800 | 3050 | 3800 | 3050 | 3800 | 3050 | 3800 | 3050 | |
| Power Supply Voltage | V | 3Φ 380V±10% | ||||||||
| Ambient Temperature | ℃ | 0 ~ 40 | ||||||||
| Relative Humidity | % | ≤ 85 | ||||||||
